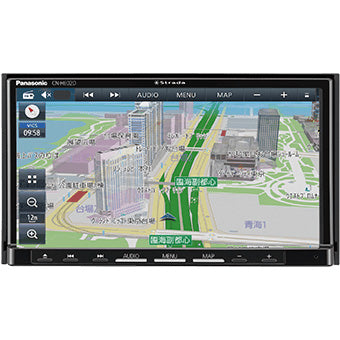

Panasonic Strada Car Navigation System [7V 180mm 2DIN model with built-in terrestrial digital 12-segment and one-segment] CN-HE02D

■This is the one you can rely on
A high level of satisfaction with a full range of functions
It is packed with features such as HD beautiful dimensional maps, HD LCD, VICS WIDE, Bluetooth, and free map updates (HA02 only).

■ Easy to understand/see
City Maps of Everywhere in Japan/Zone 30
Detailed map display covering 1,741 areas of cities, towns, and villages nationwide. Driving support showing you places to be careful.
* Manufactured by Zenrin Survey end date: November 2021 Excluding some remote islands such as uninhabited islands

■ Stress-free comfort
High-speed response / 2TOP menu
It responds quickly to finger movements, allowing smooth screen operation just like using a smartphone. Easy to use 2-TOP menu.

■Add peace of mind to your drive
Drive recorder integration
You can check the recorded footage on the spot and easily operate the settings on the navigation system.


■ Specifications ■

power supply
Power supply voltage: DC12 V (test voltage 13.2 V) negative earth
Current consumption: 2.5 A or less (when AUDIO is OFF)

LCD display
Screen dimensions (width x height x diagonal): 7 V wide 156 mm x 80 mm x 175 mm
Video input: RGB (navigation screen)
Effective pixels: 99.99%
Display method: Transmissive color filter method
Driving method: TFT (thin film transistor) active matrix method
Light source used: Internal light (LED)
Touch panel: Resistive pressure-sensitive analog type (film + glass)

Amplifier
Rated output: 18W x 4
Maximum output: 45W x 4
Suitable speaker impedance: 4 Ω (4 to 8 Ω usable)

Navigation unit
External dimensions (width x height x depth) excluding protrusions: 178 mm x 100 mm x 184 mm (mounting depth 165 mm)
Mass: 2.4 kg
Operating temperature: -10 ℃ to +60 ℃

DVD player
Signal method: Y=1.0 Vp-p Cb=Cr=0.7 Vp-p (internal) NTSC method 1.0 Vp-p (output)
Frequency response: 5 Hz to 22 kHz (sampling frequency 48 kHz)
Wow and flutter: Less than measurable
