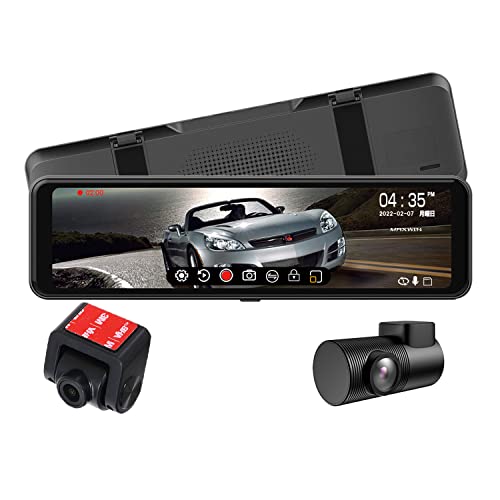

MAXWIN 10.88-inch digital mirror dashcam with front and rear recording MDR-C012B Separate front camera dashcam

◆ Separate camera for free installation
The front camera is a separate type and can be installed freely. It does not obstruct the view.
The camera is installed directly on the windshield, so even if the mirror body is displaced by the impact of an accident, it can record video more stably.
The front camera is separate from the mirror body, so the orientation of the camera does not affect the orientation of the mirror, and the camera can be installed anywhere.
There are two types of rear cameras: outside the car and inside the car.

◆ Rear camera display area adjustable (zoom in/out)
In the settings menu, you can also adjust the rear camera magnification (display range adjustment) to "zoom in/out" from 1X to 15X.
You can switch to the "enlarged" screen with a simple operation.

◆Drive recorder with parking monitoring function (requires 3-core power cable sold separately)
By connecting the optional 3-core power cable, power can be supplied even when the engine is turned off.
Time lapse recording and parking surveillance recording functions that record for a short period only when an impact is detected are available.

◆ GPS function compatible (requires GPS antenna sold separately) Drive recorder
By connecting the optional GPS antenna, the driving speed and direction obtained by the GPS antenna can be displayed on the screen.
In addition, data on the vehicle's position, speed, and driving direction are saved along with the recorded data and can be easily played back using dedicated playback software (on a PC).
In addition, the date and time information is automatically corrected when GPS is received, so there is no need to set the time manually.

◆Video can be checked with this unit
You can check the recorded footage on the spot not only on your computer but also on this unit.
The rear camera records images in a normal manner, making them easy to view when played back on the unit or a computer.


[Product Specifications]

Monitor: 10.88 inch IPS LCD
Recording resolution: Front: 1080P/720P, Rear: 1080P
Recording file structure: 1 minute/2 minutes/3 minutes
Video file format: TS (H.264)
Recorded video playback method: H.264 playback software or dedicated viewer software
Still image file format: JPG
Memory card: microSD card (up to 128GB, Class 10 required)
Power supply voltage: DC12V/24V
Operating voltage: 5V/3A
Operating temperature range: -10 to +60°C
